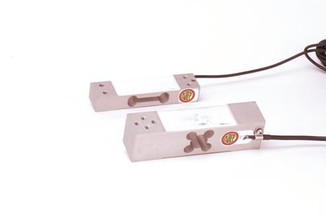

Coti Global Sensors CG-22 single point load cells are commonly used in bench scales and other medium capacity weighing applications. The CG-22 load cell has a threaded hole, 10 ft load cell cable, and is constructed of aluminum.
Features
- NTEP 1: 5,000 Class III Single Cell
- NTEP CC 08-075A2
- Aluminum construction
- Threaded hole
- IP 67 rating
- 2 mV/V output
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
Interchange
- Rice Lake Weighing Systems RL1521A BLH C2G1
- Fairbanks 4900 Series
- NMB C2G1
- Tedea 1022
- Celtron LPS
- HBM PW6K
- Artech 61022
- NTEP:
- Class III
- Capacity:
- 30 kg
- Safe Overload:
- 150% capacity
- Dimensions (L x W x H):
- 5.12 x 1.18 x 0.87 in.
- Hole Threading:
- M6
- Construction:
- Aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 10V AC/DC (maximum of 20 V)
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 410 +/- 10 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -20°C to 60°C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP 67
- Nonlinearity:
- +/- 0.02 % full scale
- Hysteresis:
- +/- 0.02 % full scale
- Repeatability:
- +/- 0.02 % full scale
- Creep (30) Minutes:
- +/- 0.03% full scale
- Zero Balance:
- +/- 1.00% full scale
- Temperature Effect on Zero:
- +/- 0.002% of rated output /°C
- Temperature Effect on Output:
- +/- 0.001% of applied load /°C
- Cable Length:
- 10 ft
- Manufacturer:
- Coti Global Sensors
- Item No.:
- CG-22 30 kg
- Product Type:
- Load Cell
- Model Series:
- CG-22
