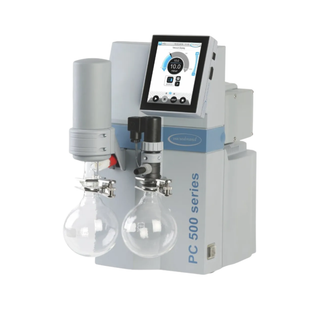

VACUUBRAND PC 500 series chemistry pumping units are an excellent choice for supporting electronically controlled evaporation or drying processes. The popular MZ 2C NT two stage chemistry diaphragm pump is the heart of these pumping units, frequently used for medium-sized vacuum applications involving common solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. Use manual set-point-control for simple processes, run distillations, or create your own application with simple drag-and-drop editing.
For solvent evaporation, it detects the boiling pressure and switches to two point control to hold pressure steady when a boiling point is detected. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. And the exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection.
- Max Pumping Speed (50 Hz):
- 2 m3/h
- Max Pumping Speed (60 Hz):
- 1.4 cfm
- Ultimate Vacuum:
- 7 mbar / 5 torr
- Ultimate Vacuum w/ Gas Ballast:
- 12 mbar / 9 torr
- Number of Heads:
- 2
- Number of Stages:
- 2
- Vacuum Controller:
- VACUU-SELECT
- Max Back Pressure (abs.):
- 1.1 bar
- Inlet Connection:
- Hose nozzle DN 8-10 mm
- Outlet Connection:
- Hose nozzle DN 8-10 mm
- Coolant Connection:
- 2 x hose nozzle DN 6-8 mm
- Motor Power:
- 0.18 kW
- Protection Rating:
- IP 20
- Noise Level:
- 45 dBA
- Interface:
- Ethernet RJ45, Modbus TCP/USB-A, RS-232 (additional adapter required)
- NRTL Certification:
- No
- Working Environment:
- 10 °C to 40 °C
- Dimensions (L x W x H):
- 16.5 x 10.7 x 18 in.
- Weight:
- 38.8 lbs
- Power:
- 100-120V, 50-60Hz
- Manufacturer:
- VACUUBRAND
- Model:
- PC 510 Select
- Item No.:
- 20733153
- Country of Origin:
- Germany
- Product Type:
- Vacuum Pump
