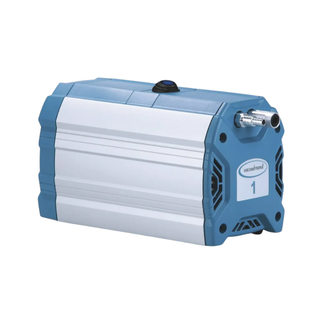

Vacuum filtration is one of the most common applications used for sample preparation in chemistry, microbiology, waste water control and other analytical processes. VACUUBRAND ME 1 diaphragm pumps offer a compact, high performance and easy-to-use solution which is perfect for single port filtrations. These oil-free diaphragm pumps provide a well-proven and extraordinarily long diaphragm life with typically 15,000 operating hours. The functional, space saving and innovative design with visible top mounted power switch ensures convenient and quick operation for day-to-day lab work. The PTFE diaphragm and valves are rugged and provide high chemical resistance. An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and ultimate vacuum.
One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use. Typical applications for the ME 1 are aqueous filtrations. With filtration at 100 mbar, 90% of atmospheric pressure is available as a driving force. If a certain pressure difference must not be exceeded, an optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and ultimate vacuum.
- Max Pumping Speed (50 Hz):
- 0.7 m3/h
- Max Pumping Speed (60 Hz):
- 0.5 cfm
- Ultimate Vacuum:
- 100 mbar / 75 torr
- Number of Heads:
- 1
- Number of Stages:
- 1
- Max Back Pressure (abs.):
- 1.1 bar
- Inlet Connection:
- Hose nozzle DN 6-10 mm
- Outlet Connection:
- Silencer / G1/8"
- Motor Power:
- 0.04 kW
- Protection Rating:
- IP 40
- Noise Level:
- 49 dBA
- NRTL Certification:
- Yes
- Working Environment:
- 10 °C to 40 °C
- Dimensions (L x W x H):
- 10.6 x 4.8 x 6.1 in.
- Weight:
- 11.9 lbs
- Power:
- 100-120V, 50-60Hz
- Manufacturer:
- VACUUBRAND
- Model:
- ME 1
- Item No.:
- 20721003
- Country of Origin:
- Germany
- Product Type:
- Vacuum Pump
